3D Scanning

What exactly is 3D Scanning?

3D scanning, also known as 3D digitization or 3D imaging, is a technology that involves capturing the physical shape, structure, and appearance of real-world objects to create digital 3D models. This is a process where the geometry and often the texture or color of an object are recorded to generate a three-dimensional representation of the object in a digital format.

3D Scanning Process Explained

The following explains how the process typically works:

Data Capture:

Sensors and Devices:
Specialized scanners with lasers, structured light, or other technologies, are used to capture data from the surface of an object.
Data Acquisition:
The scanner emits light towards the object, and the reflected or emitted light is detected by the scanner’s sensors. These sensors record the distance, shape, and texture of the object’s surface.

Point Cloud Generation:

Point Cloud:
The data is captured as a point cloud, which is a large collection of x, y, z coordinates in 3D space. This represents the surface of the object.

Mesh Creation:

Meshing:
Using specialized software, the point cloud is processed to create a mesh. The mesh is a digital representation of the object’s surface. A mesh is made up of interconnected vertices, edges, and faces that define the geometry of the object.

Texture Mapping:

Texture Capture: In addition to geometry, some 3D scanners also capture color or texture data during the scanning process.
Texture Mapping:
The captured texture data is mapped onto the 3D mesh. This creates a realistic representation of the object’s surface, including its color and appearance.

Post-Processing:

Clean-Up and Refinement:
The generated 3D model may need post-processing to remove noise and fill holes. This then refines the geometry and texture for a more accurate representation.
Data Optimization:
Optimizations can be applied to reduce the file size and improve the performance of the 3D model for various applications.

Some of the uses for 3D Scanning

The resulting 3D model can be used for a wide range of applications, including but not limited to:

Manufacturing: Prototyping, reverse engineering, and quality control.
Entertainment and Gaming: Character design, animation, and virtual environments.
Archaeology and Cultural Heritage: Preservation and analysis of artifacts and historical sites.
Medical and Healthcare: Custom prosthetics, orthotics, surgical planning, and visualization.
Design and Architecture: Architectural modeling, interior design, and urban planning.
Education: Learning and interactive educational content.

Overall, 3D scanning is a powerful tool that creates a digital representation of physical objects. This enables a wide range of applications across various industries.

What can 3D scanning do?

3D scanning offers many capabilities and applications across various industries due to its ability to capture and digitize real-world objects in three dimensions. Here are some of the key things that 3D scanning can do:

In essence, 3D scanning transforms physical objects into digital data. A wide range of applications across diverse industries used this to improve efficiency, innovation, and understanding of the physical world.

3D scanning has many applications across various industries. This is due to its ability to capture and digitize real-world objects in three dimensions. Here are some of the key things that 3D scanning can do:

Reverse Engineering:

3D scanning can be used to reverse engineer existing physical objects. Thereby allowing for the creation of digital models that replicate their shape, structure, and features. This is particularly useful for redesigning or improving existing products.

Prototyping and Product Development:

3D scanning is crucial in product development for creating prototypes and refining designs. It allows designers and engineers to rapidly capture real-world objects, saving time and resources in the product development cycle.

Quality Control and Inspection:

Manufacturers use 3D scanning to inspect and analyze the manufactured parts or products to ensure they meet specific quality standards. Deviations from the intended design can be identified and corrected, maintaining high-quality production.

Customization and Personalization:

3D scanning allows for the customization of products to suit individual preferences and requirements. This is particularly relevant in industries such as healthcare (custom prosthetics), fashion (tailored clothing), and consumer goods.

Archiving and Cultural Heritage Preservation:

In fields like archaeology and cultural heritage, 3D scanning is used to preserve artifacts, historical sites, and culturally significant objects. It creates a digital archive for future generations and aids in restoration efforts.

Virtual Reality and Simulation:

3D scanning is integral to creating immersive virtual reality (VR) experiences and simulations. Scanned 3D models can be used to build virtual environments for gaming, training simulations, and educational applications.

Animation and Film Industry:

3D scanning assists in creating highly realistic 3D models for animation and movies. It streamlines the process of character and set design, enabling accurate modeling and texturing.

Medical and Healthcare:

In the medical field, 3D scanning is used for surgical planning, creating patient-specific models for pre-surgical analysis, producing custom implants, and generating anatomical models for medical education.

Art and Sculpture:

Artists and sculptors use 3D scanning to create digital replicas of their physical artwork or to digitally enhance and manipulate sculptures, enabling new creative possibilities.

Geospatial Mapping and Surveying:

3D scanning is utilized for mapping and surveying landscapes, buildings, and infrastructure to create detailed 3D models, aiding in urban planning, construction, and environmental analysis.

Forensics and Crime Scene Analysis:

Law enforcement agencies use 3D scanning to document crime scenes in detail. This data can be used for forensic analysis and courtroom presentations.

Education and Research:

3D scanning is employed in educational institutions and research organizations for various purposes, including anatomy studies, archaeological research, and material analysis.

In essence, 3D scanning transforms physical objects into digital data, enabling a wide range of applications across diverse industries, ultimately leading to improved efficiency, innovation, and understanding of the physical world.

What is the next step?

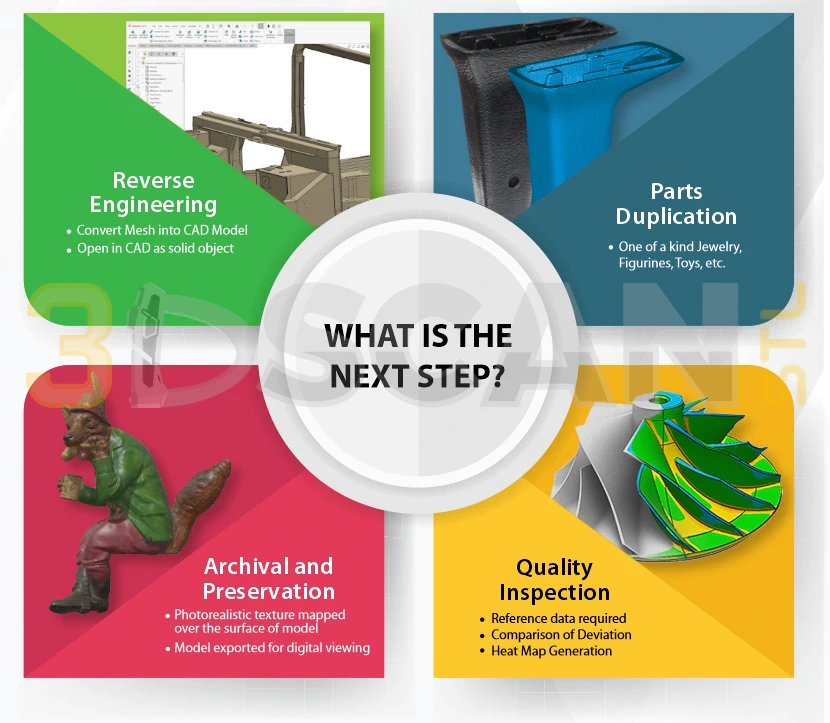

Funny you should ask. The answer is; first, it depends on what you intend to do with the 3D model once it’s created. This also dictates how the object will be scanned. Options such as capturing texture information are important when archiving and preserving an item such as a piece of art or a stunning piece of architecture. If your needs are strictly technical such as reverse engineering or quality inspection, high definition data is necessary to create a ‘solid object’. Next, once converted to a solid object, you can bring it into your preferred CAD software such as SolidWorks, Fusion 360, FreeCad, etc.. Another major use of 3D scanning is to capture and recreate obsolete parts for vehicles, homes, industry and/or manufacturing. In many cases, the 3D model is sufficient for parts duplication without the need to convert the item into a solid CAD object.
