Artec Ray II Lidar Scanner used by 3D Scan STL

Hardware We Use:
Artec Ray II Lidar Scanner

Advanced Applications of the Artec Ray II Lidar 3D Scanner

When scanning large objects such as cars, trucks, motorcycles, aircraft, buildings, or warehouse and industrial building interiors, we utilize the Artec Ray II Lidar 3D Scanner to deliver exceptional precision and efficiency.

Key Features and Capabilities

  • High-Accuracy Long-Range Scanning:
  • The Ray II offers scanning capabilities from up to 130 meters away, enabling you to capture expansive objects and environments without compromising detail. This is especially useful when physical access is limited or hazardous.
  • Wireless Operation:
  • Its wireless design enhances flexibility on site. You can position the scanner optimally without being tethered by cables, simplifying setup and reducing downtime.
  • Lightweight and Portable:
  • The compact form factor allows easy transport to various locations, whether it’s outdoor industrial sites or confined indoor spaces.

Suitable Use Cases

The Artec Ray II excels in capturing complex geometries and large-scale structures with remarkable accuracy. Typical applications include:

  • Industrial Assets:
  • Such as wind turbines, ship propellers, factory floors, and bridges requiring precise dimensional data for maintenance, inspection, or reverse engineering.
  • Aerospace and Automotive:
  • Detailed scanning of aircraft exteriors and vehicles provides data essential for quality control or digital twin creation.
  • Forensic Documentation:
  • Capturing crime scenes accurately enables thorough analysis while preserving evidence integrity.
  • Archaeological Sites:
  • Non-invasive documentation of heritage sites facilitates preservation efforts without disturbing fragile artifacts.

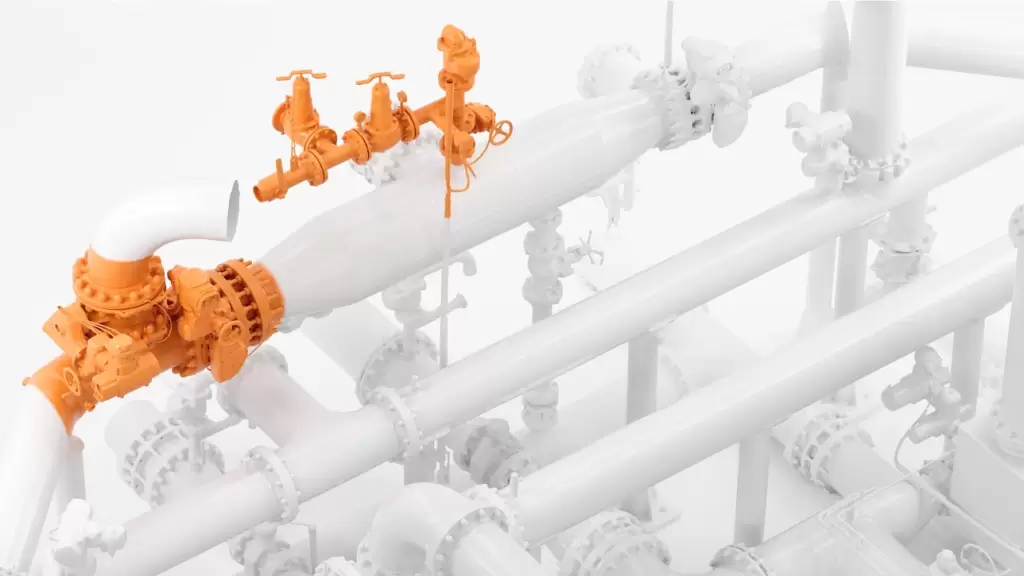

Artec Ray II Scanning Industrial Piping

Performance Highlights

  • Rapid Data Acquisition:
  • Large vehicles can be scanned within minutes. More extensive structures like buildings or aircraft can be completed in just a few hours—significantly reducing project timelines.
  • Best-in-Class Angular Accuracy:
  • Ensures that every point in your scan aligns perfectly with real-world measurements, crucial for applications demanding high precision.
  • Versatile Environment Adaptability:
  • Whether outdoors in bright sunlight or indoors within dimly lit warehouses, the Ray II maintains consistent performance.

This technology empowers you to confidently handle large-scale scanning projects with professional-grade accuracy and efficiency.

Features:
  • 3D point accuracy:
    1.9 mm @ 10 m
    2.9 mm @ 20 m
    5.3 mm @ 40 m
  • Angular accuracy:
    18 arcseconds (0.87 mm @ 10 m)
  • Field of view:
    360° (horizontal) / 300° (vertical)
  • Range:
    0.5 – 130 m
