Elevator Motor MX14

Sketchfab code

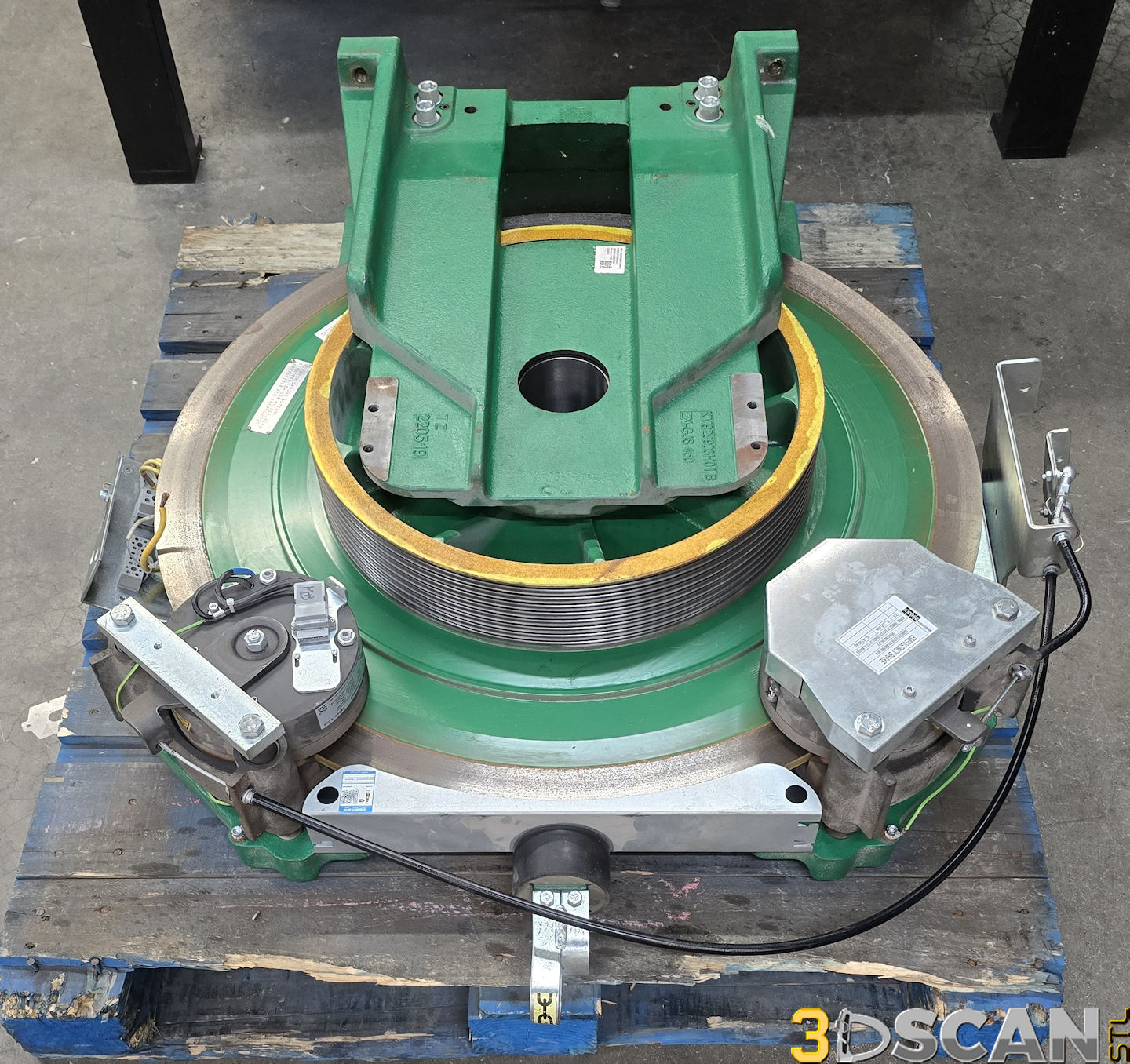

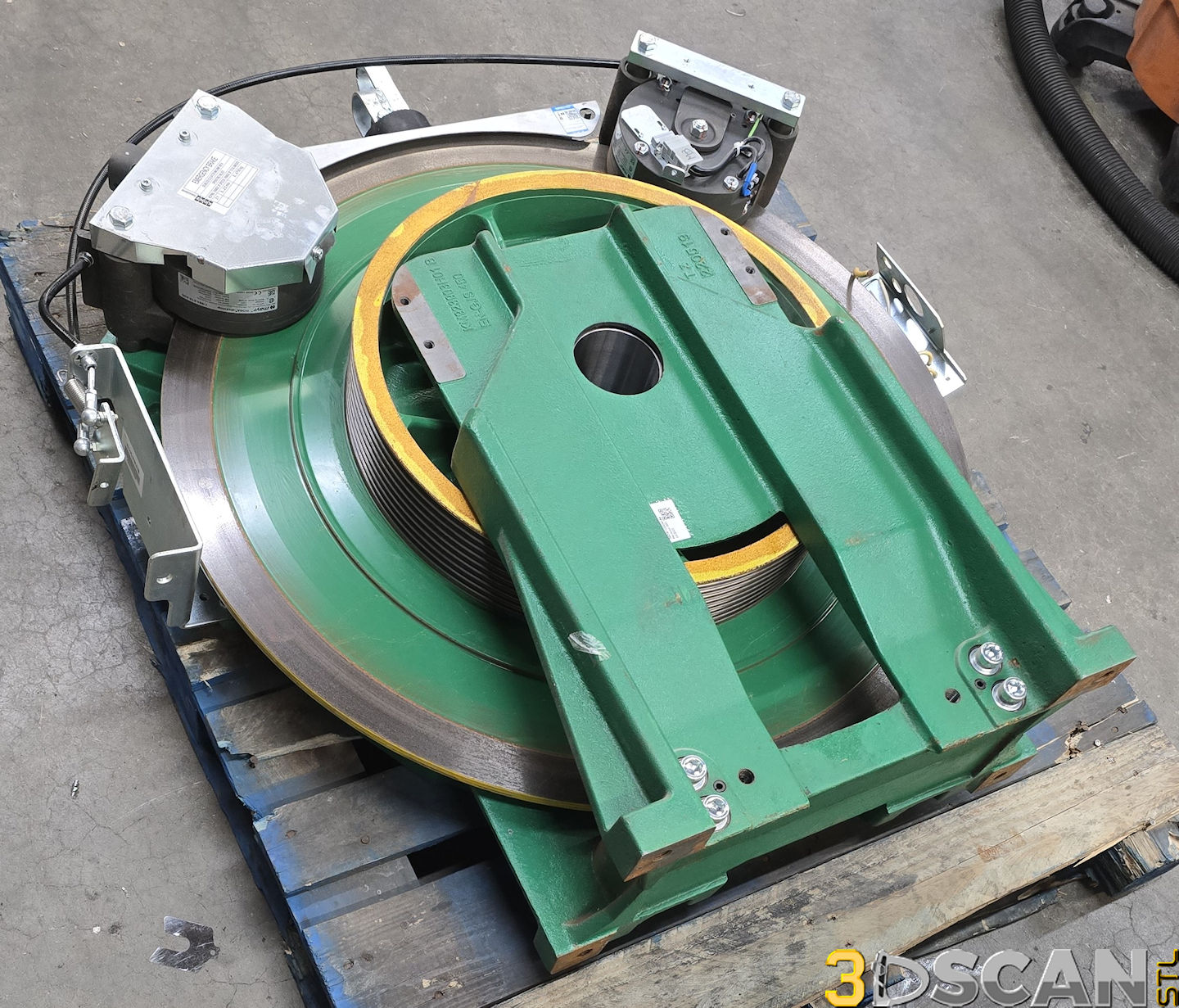

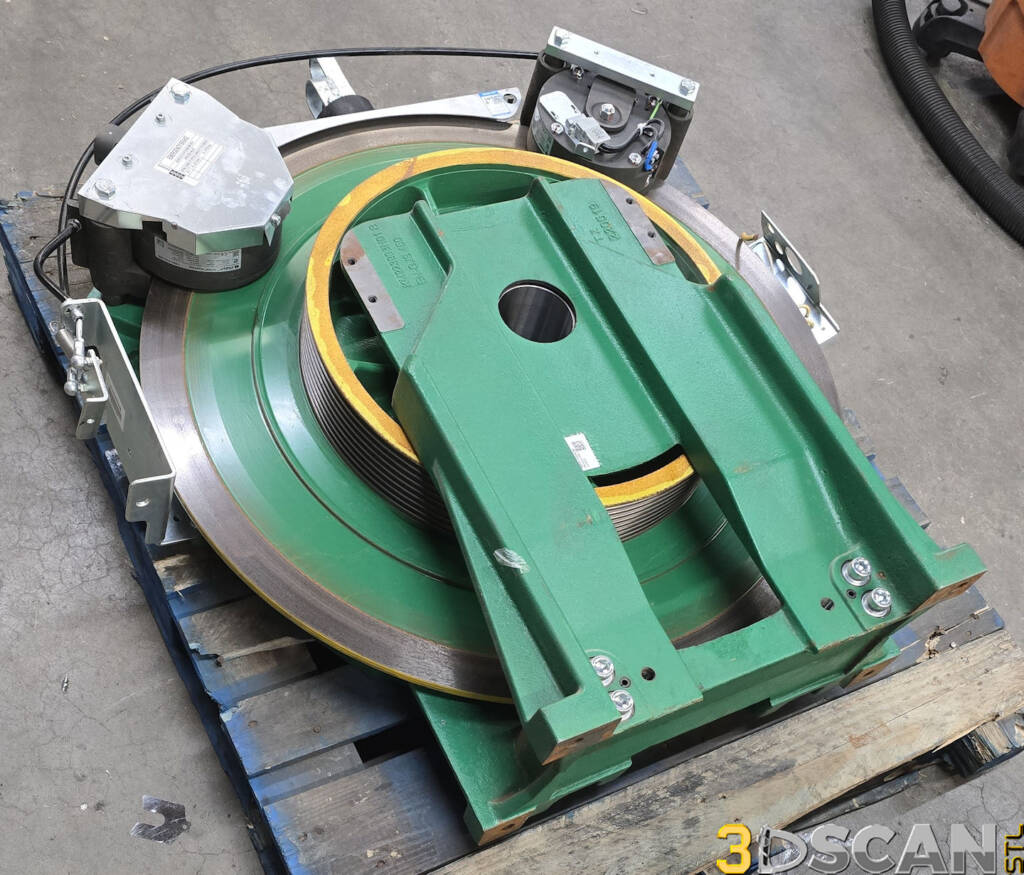

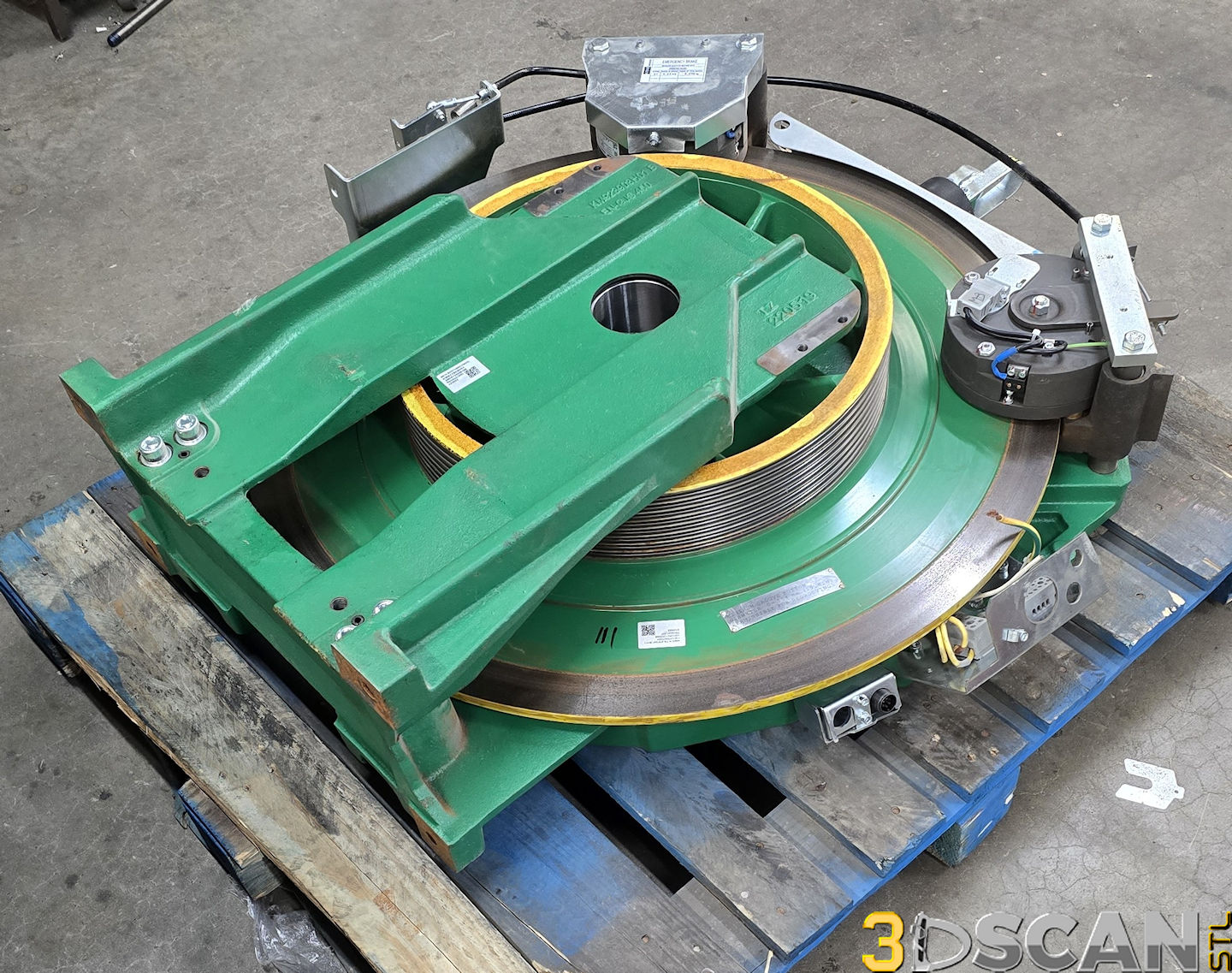

We were contracted again by Hollister-Whitney to scan a couple of elevator motor units at their facility in Quincy, Illinois. These were very large and very heavy assemblies. It took about an hour each to scan them both and a little bit more time to capture the brackets as well. This unit weighs over 2000lbs, but was somewhat easier to scan than the MX20. The objective was to capture the major dimensional data for use when designing the framework for mounting of this motor.
