Scan Into Multiple Solid Objects

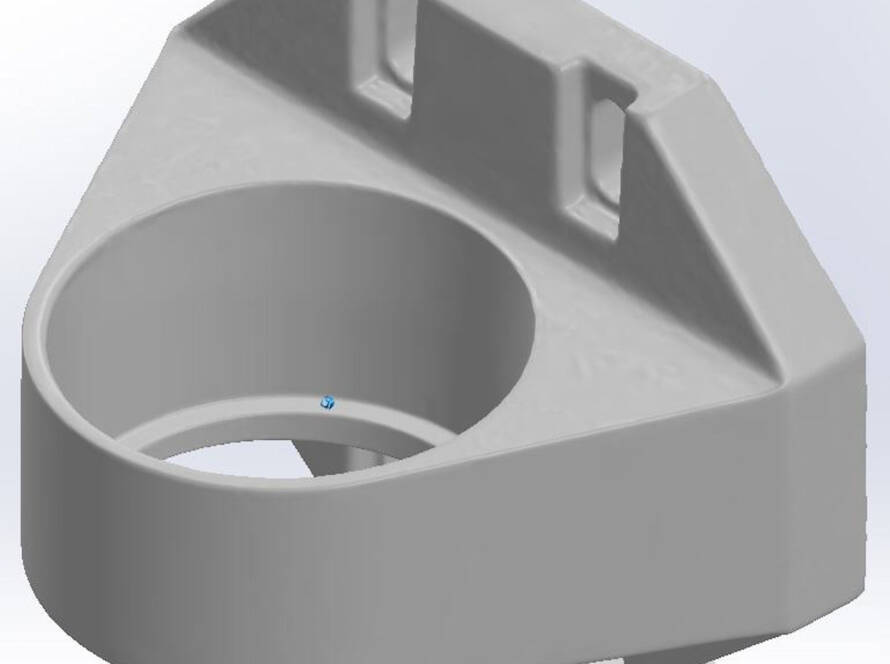

After scanning, the goal was to create a solid object for use in CAD. However, due to the file size of the model which was generated, the conversion resulted in a file over half a gigabyte. To keep the data manageable, we digitally disassembled the motor unit so the smaller pieces would consume fewer hardware resources for processing the step files. We also utilized our advanced conversion applications to convert some objects directly into CAD ‘privatives’ with the exact same dimensions, including the cable drum which was impossible to scan fully due to be its being mostly obscured from view.
